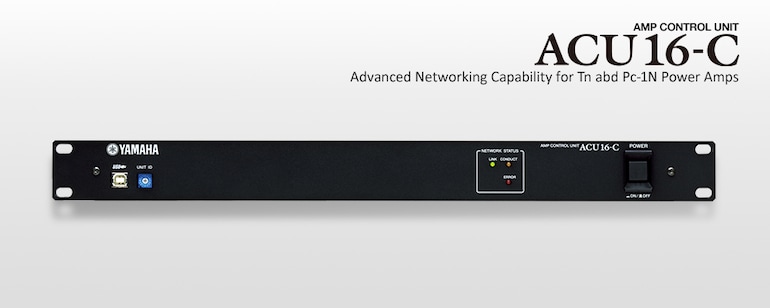

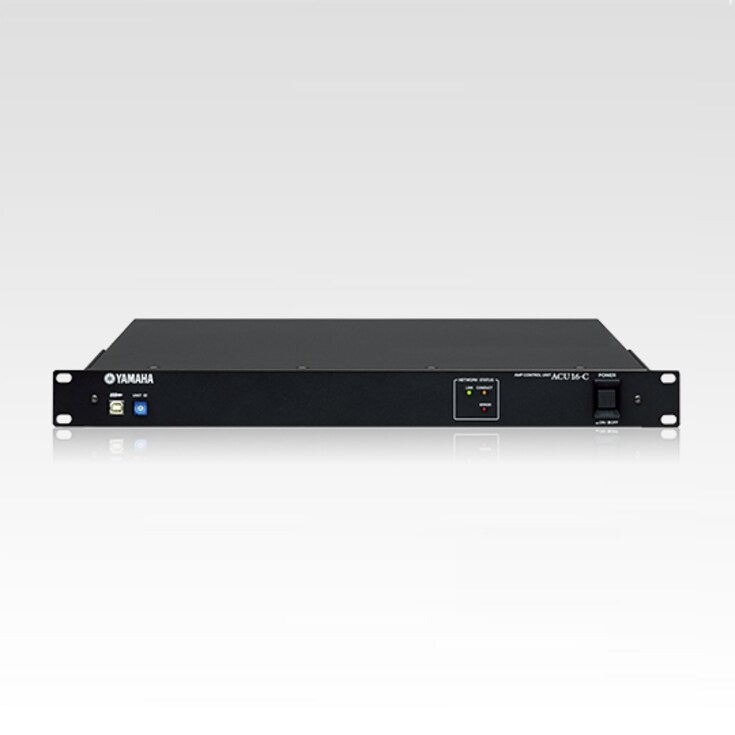

ACU16-CAmp Control Unit
This amp control unit allows control of networkable amplifiers from a computer, and includes CobraNet™ to 16-channel analog audio interface functionality.
Features
Monitor/Controller for Tn and PC-1N Series Amps with CobraNet™ Capability
16-channel D/A Converter and Monitor/Control Unit The ACU16-C converts up to 16 channels of digital audio (48 kHz/20-bit or 24-bit) to analog using CobraNet technology, and delivers analog audio to the power amplifiers with a dynamic range of 110dB. Tn and PC-1N series amplifier settings and status can be monitored and controlled using the supplied NetworkAmp Manager software and a computer: power on/standby, attenuation, out/in levels, temperature, load impedance, and more. One ACU16-C can control up to 32 Tn and PC-1N series amplifiers. Connect a computer to any NHB32-C or ACU16-C in the network, and have full monitoring/control capability over all CobraNet-connected Tn and PC-1N series amplifiers. About CobraNet™ There is a growing need for large-scale audio systems, and with it the need for advanced networking technologies that can distribute high-quality audio quickly and reliably throughout large venues or open facilities with fully integrated control. CobraNet™ is a sophisticated technology that enables transfer of multiple audio and control channels via Ethernet cable. As an integrated system, CobraNet allows digital data to be carried up to 100 meters* from one port to another device by common CAT-5/100Base-TX cabling, or up to 2 kilometers by optical fiber. It is fast, with constant 5.33ms latency**; it is reliable, thanks to built-in redundant systems; and, with the standard cabling and connections, it is remarkably easy to use and economical. * The actual maximum length of cables may differ depending on the quality of the Ethernet equipment or the particular settings used. ** Low latency mode of CobraNet™ is now supported, which enables users to choose from 5.33ms, 2.67ms and 1.33ms.
Control and Monitor up to Thirty-Two Tn and PC-1N Series Amplifiers
The ACU16-C provides comprehensive control of up to thirty-two Tn and PC-1N series amplifiers. With a computer and the included NetworkAmp Manager software, you can control and monitor in/out levels, limiting, protection circuits, heat sink temperature, power on/standby status, attenuation, phase, muting … and even speaker failure through the speaker impedance monitoring.
Automatic Troubleshooting and Logging
NetworkAmp Manager also serves as a comprehensive troubleshooting aid, warning you of problems and recording them automatically to a log file. The software monitors conditions such as protection circuit activation, heat sink temperature, and any increase in impedance over a previously set value, immediately alerting you to and allowing you to pinpoint any problems or malfunctions.
Up to 16 Channels of D/A Conversion with Cobranet™ Compatibility
The ACU16-C is fully compatible with CobraNet™ technology, allowing you to receive four bundles* of digital audio and assign the received audio to the 16 analog outputs. Thanks to the high-performance 24-bit D/A converters - the same type that is used in the DM2000 and 02R96 digital consoles - uncompromised sound quality with 110dB dynamic range is maintained right up to the Tn and PC-1N units. This sophisticated device can also send and receive control data, so you can use just one ACU16-C to network up to thirty-two Tn and PC-1N series power amps in extended systems. What's more, up to sixteen ACU16-C devices can be connected via the high-speed CobraNet™ connections. * One bundle contains 8 channels of 20-bit audio, or 7 channels of 24-bit audio (at 48 kHz).
Duplicate Connections for Exceptional Reliability
The ACU16-C is fitted with redundant primary and secondary CobraNet™ ports. Simply connect Ethernet cables to both ports, and you have a fail-safe, secure amplification system.
* Specifications are subject to change without notice. The colors and finishes shown may vary from those on the actual products.
