| General Specifications | General | Construction | Bolt-on (Miter bolting) |
|---|---|---|---|
| Scale Length | 34" (863.6 mm) | ||
| Body | Body Materials | Alder 3-Piece with Spline Joint | |
| Body Finish | Gloss Polyurethane | ||
| Neck | Neck Materials | Maple | |
| Neck Finish | Satin Polyuretharne | ||
| Fingerboard Materials | Maple (Scallopps from frets 17th through 21th) | ||
| Fingerboard Radius | 10" (250 mm) | ||
| Fret wire | 1-16 Fret: Jumbo, 17-21 Fret: Medium | ||
| Number of frets | 21 | ||
| Nut materials | Polyacetal | ||
| Width @ 0 Fret / 12th Fret | 44.5 / 57.6 mm | ||
| Thickness @ 1st Fret / 12th Fret | 20.0 / 24.0 mm | ||
| Electronics | Neck Pickup | Yamaha Designed DiMarzio Woofer Pickup | |
| Middle Pickup | DiMarzio WillPower | ||
| Bridge Pickup | - | ||
| Controls | Woofer P.U. Volume, Middle P.U. Volume with Push-Pull Stereo/Mono Switch, Woofer Tone with Woofer High Cut Switch | ||
| Pickup Switch | - | ||
| Hardware | Bridge | Solid Brass | |
| String spacing | 19mm | ||
| Tailpiece | - | ||
| Tuning Machines | Gotoh GB2 with Hipshot D-Tuner | ||
| Pickguard | White Pearl 3-Ply | ||
| Others | String gauge | D'Addario EXL170 / 0.045-0.100 | |
| Case | Hardshell Case | ||
| Special Features | A.R.E. / I.R.A. Treatment |

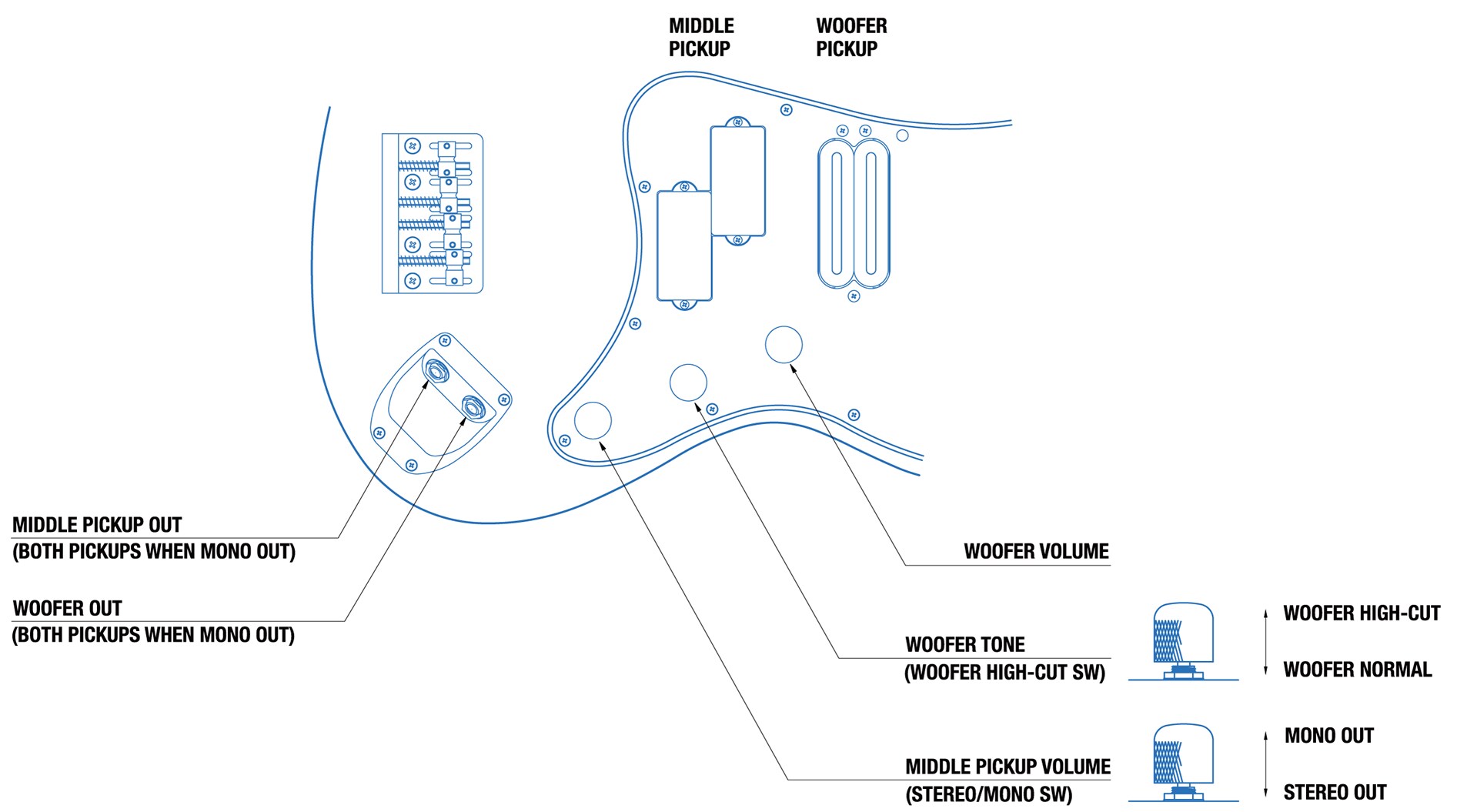

Control Systems
