MGX Series Digital Mixing Console

Lineup

Features

The Digital Evolution of an Analogue Classic

Acclaimed for their exceptional sound quality, versatility, and intuitive design, Yamaha’s MG series compact analogue mixers have become an industry standard for users in a vast range of applications. The MGX series breaks considerable new ground, ushering in a new era of MG excellence, driven by a deeper pursuit of "True Sound" that faithfully captures and reproduces every nuance of a performance, as well as an impressive expansion of functionality and system flexibility to adapt to the ever-changing landscape of sound reinforcement and music production.

Blending advanced digital technology with the trusted legacy of the MG series, the MGX series is adept at handling a variety of demanding applications, including live sound, installed sound systems, podcast/live streaming and recording, as well as hybrid live and other video production applications that require handling not only audio but also video signals, supported by our two video models.

The digital evolution of an analogue classic, the MGX series digital mixers will inspire performers, engineers, operators, and audiences in any audio environment, with their superior sound and exceptional performance.

The Sound That Sets Us Apart

Deeply rooted in Yamaha's heritage of designing industry standard analogue mixers, the MGX series carries a unique sonic signature cultivated from our unrivalled experience as a manufacturer of a diverse range of both audio products and musical instruments.

This sets the MGX series apart from other digital mixers, capturing the nuanced richness, with the precision and responsiveness required to faithfully convey every dynamic element of a musician’s or performer’s expression—qualities that define the very essence of our pursuit of “True Sound”. The implementation of our most cutting-edge technologies, making the MGX series an obvious choice for all users seeking state-of-the-art performance and authentic, premium sound quality.

Yamaha MGX Series: The Sound That Sets Us Apart

Where Mixing Capability Meets Creativity

The MGX series comes equipped with all the requisite capabilities of a professional mixer and so much more. Versatile connectivity, flexible routing, and powerful mixing functions, all of which are crucial to successfully meet the diverse and demanding requirements of these applications.

Backed by advanced features like dual USB ports, Bluetooth, microSD multi-track recording/playback, as well as two models equipped with a HDMI-USB video interface, the MGX series is capable of outstanding adaptability, empowering creators to handle any production with confidence.

Yamaha MGX Series: Where Mixing Capability Meets Creativity

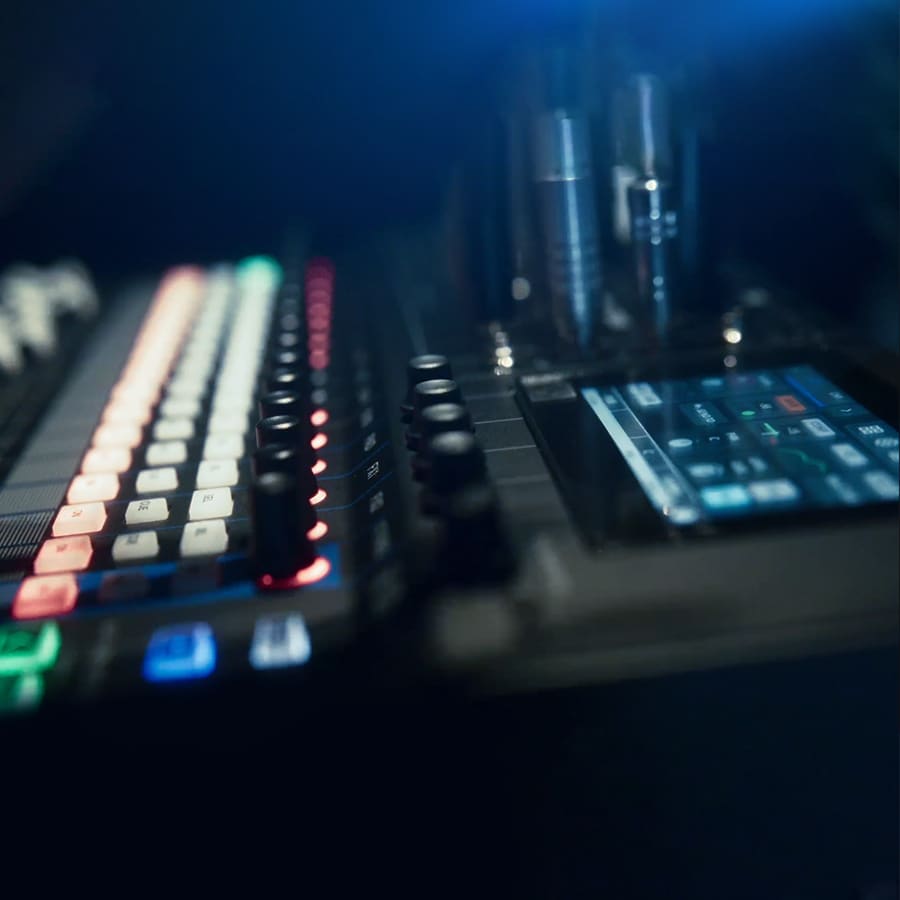

Serious Functionality. Seamless Execution.

Getting professional-level quality from a versatile state-of-the-art mixing console is now more accessible than ever. The MGX series is designed for intuitive and fast operation that allows for quick access to essential controls and seamless adjustment of settings without interrupting your workflow.

The versatility of the MGX series ensures that it can adapt to any setting with ease, giving musicians, engineers, producers, streamers, and system integrators, all the tools they need to easily and reliably produce professional results with ease.

Yamaha MGX Series: Serious Functionality. Seamless Execution.

Bring Your Creative Vision to Life

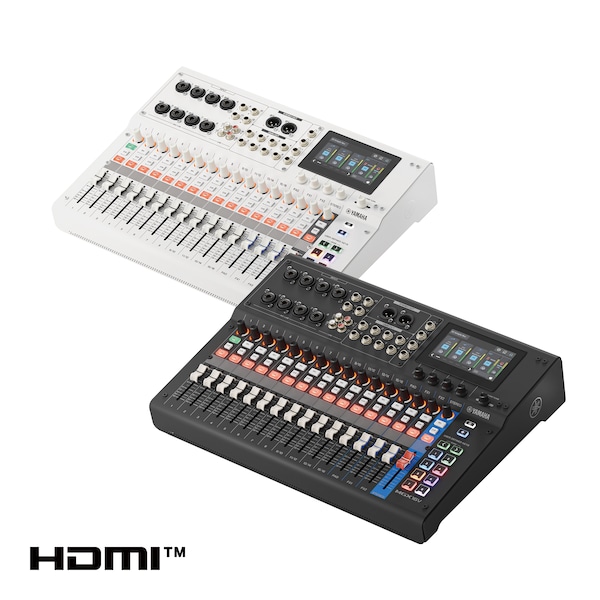

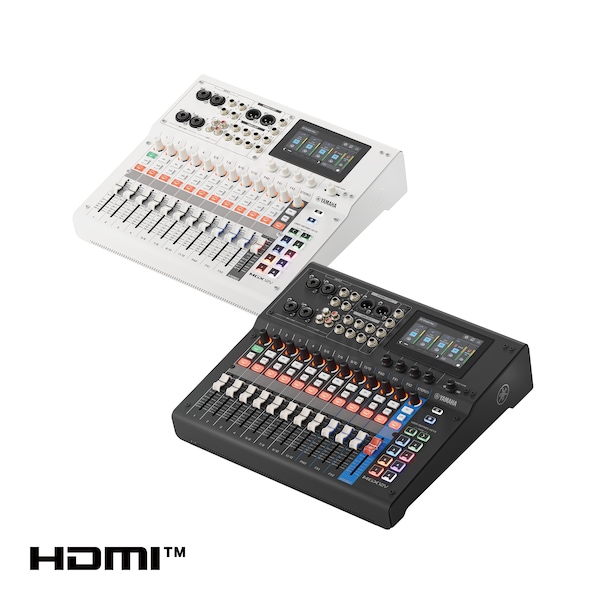

Audio environment evolution requires modern solutions—that’s why we’ve equipped two MGX-V models of the MGX series with HDMI-USB video capture/pass-through capability, designed to support and enhance hybrid live performances, live streaming, virtual events, and video content creation.

This advanced integration allows you to seamlessly combine high-quality audio and video signals in a compact system capable of bringing your vision to life.

Yamaha MGX Series: Bring Your Creative Vision to Life

A Full-Scale Operation

With an ever-expanding product ecosystem and a wide range of compatible controllers, your MGX console becomes a powerful partner in both your creative journey, and your impact as a professional—unlocking possibilities that extend far beyond those of a traditional mixer.

Powered by Yamaha, Steinberg, and trusted partners like Elgato and OBS, this evolving collaboration aims to deliver the tools and services that drive your creativity and your career forward.

Yamaha MGX Series: A Full-Scale Operation

Comparison Chart

Application Base

Can be scrolled

MGX-V models
Yamaha MGX-V models

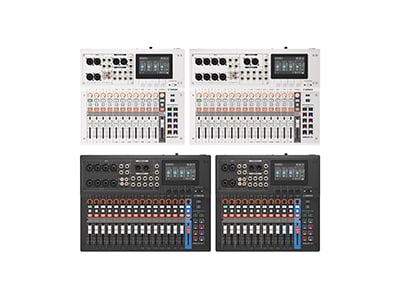

MGX models
Yamaha MGX models
DM3 Series
Yamaha DM3 Series

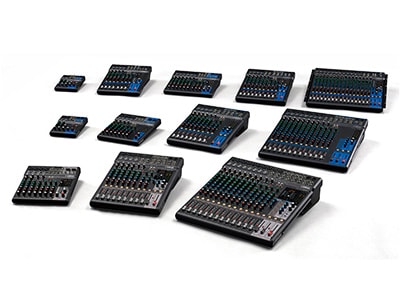

MG-XU models
Yamaha MG-XU models
LIVE SOUND: Small-scale event Yes Yes Yes Yes
LIVE SOUND: Corporate event Yes Yes Yes Yes
LIVE SOUND: Musician PA Yes (Simple mode/Assistive Function) Yes (Simple mode/Assistive Function) Yes Yes
LIVE SOUND: Streaming event (Hybrid live) Yes (HDMI-USB Video interface, Dual USB-MAIN/SUB, Multi-Stream Audio) Yes (Dual USB-MAIN/SUB, Multi-Stream Audio) Yes No
STREAMING: Four-Person podcast Yes (4 Mic Inputs / 4 Headphone Outputs) Yes (4 Mic Inputs / 4 Headphone Outputs) Yes Yes
STREAMING: Game streaming Yes (HDMI-USB Video interface, Dual USB-MAIN/SUB, Multi-Stream Audio) Yes (Dual USB-MAIN/SUB, Multi-Stream Audio) Yes No
PRODUCTION: PC-USB recording Yes (Multi-track recording) Yes (Multi-track recording) Yes (Multi-track recording) Yes (2-track recording)
PRODUCTION: Stand-alone recording Yes (microSD: Multi-track recording) Yes (microSD: Multi-track recording) Yes (USB storage device: 2-track recording) No
PRODUCTION: Small-scale video production Yes (HDMI-USB Video interface, Dual USB-MAIN/SUB, Multi-Stream Audio) Yes (Dual USB-MAIN/SUB, Multi-Stream Audio) Yes Yes
INSTALLED SOUND: Small-scale facility Yes (Colour options: Black / White)
Yes (Colour options: Black / White)
Yes Yes
INSTALLED SOUND: House of Worship Yes (Colour options: Black / White)
Yes (Colour options: Black / White)
Yes Yes

Function Base (Quick Specs)

Can be scrolled

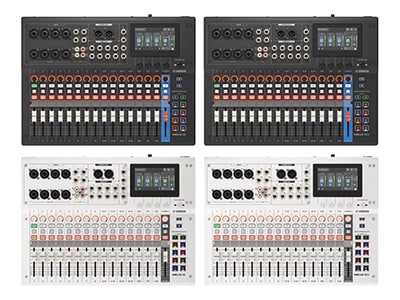

MGX16/MGX16V
Yamaha MGX16/MGX16V

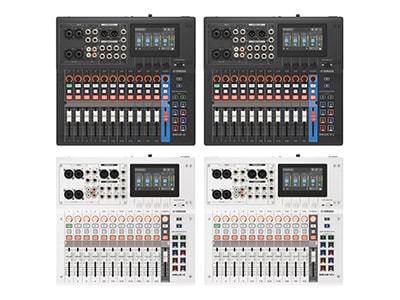

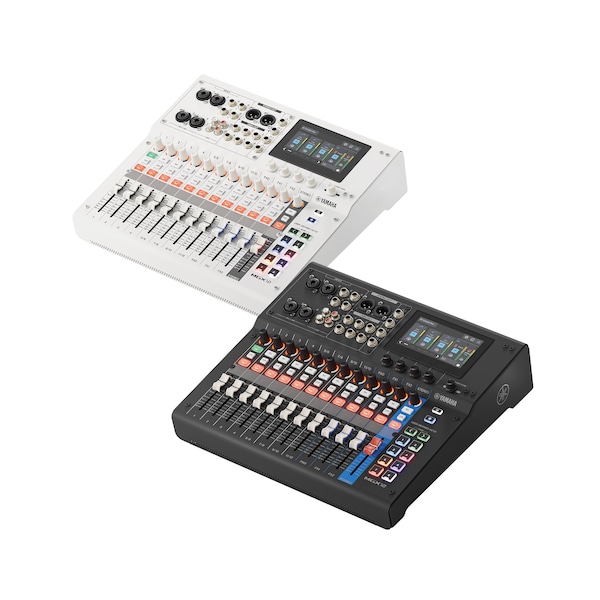

MGX12/MGX12V
Yamaha MGX12/MGX12V

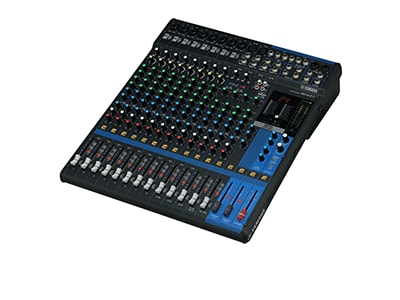

MG16XU
Yamaha MG16XU

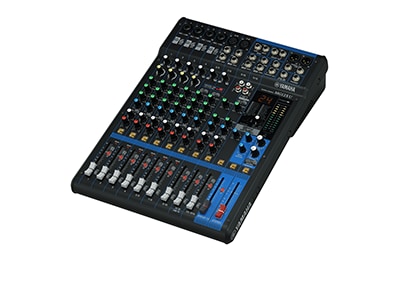

MG12XU
Yamaha MG12XU
DM3 Series
Yamaha DM3 Series
Colour variants
Yes (Black / White) Yes (Black / White) No No No
USB to Host 2 USB Type-C (MAIN / SUB) 2 USB Type-C (MAIN / SUB) USB Type-B USB Type-B USB Type-B
Power supply Barrel type, DC power IN AC Power Adapter (PA-300) Barrel type, DC power IN AC Power Adapter (PA-300) AC power cord AC power cord XLR 4pin, DC power IN AC Power Adapter (PA-L500)
Mic pre-amps 8 4 8 4 16
Input channels 8 mono + 4 stereo + 1 Sound Pad + 2 FX 4 mono + 4 stereo + 1 Sound Pad + 2 FX 8 mono + 2 stereo/mono + 2 stereo 4 mono + 2 stereo/mono + 2 stereo 16 mono + 1 stereo + 2 FX return
Mix buses 8 MIX + 2 FX + 1 CUE + 1 STEREO 8 MIX + 2 FX + 1 CUE + 1 STEREO 1 Stereo, 4 Group, 4 AUX (incl. FX) 1 Stereo, 2 Group, 2 AUX (incl. FX) 6 Mix + 2 FX + 1 Cue + 1 Stereo
Headphone outs 4 4 1 1 1
Onboard DSP Yes Yes Yes Yes Yes
Dante No No No No Yes
Bit Depth / Sample Rate 32-bit / 96 kHz 32-bit / 96 kHz 24-bit / 192 kHz 24-bit / 192 kHz 32-bit / 96 kHz
USB MAIN 22-track recording / playback 18-track recording / playback 2-track recording / playback 2-track recording / playback 18-track recording / playback
USB SUB 2-track recording / playback 2-track recording / playback No No No
Multi-Stream Audio (Loopback) 3 3 1 1 1
Bluetooth Audio Bluetooth audio input (Bluetooth 5.0, A2DP) Bluetooth audio input (Bluetooth 5.0, A2DP) No No No
microSD/USB storage microSD: Up to 16-track recording / 2-track playback microSD: Up to 16-track recording / 2-track playback No No USB storage device (Type-A): 2-track recording / playback
HDMI V model only: 1 In / 1 Thru (A/V Capture & Pass-Through) V model only: 1 In / 1 Thru (A/V Capture & Pass-Through) No No No
Net Weight MGX16: 4.7 kg (10.4 lb), MGX16V: 4.9 kg (10.8 lb) MGX12: 3.9 kg (8.6 lb) MGX12V: 4.1 kg (9.0 lb) 6.8 kg (15.0 lbs.) 4.2 kg (9.3 lbs.) 6.5 kg (14.3 lb)
