Can be scrolled
| General | Interface | USB 2.0 Full Speed (Mini-B), Bluetooth, NFC (Near Field Communication), EXT IN/OUT (stereo mini plug) | |
|---|---|---|---|
| Power consumption (max) | 2.5 W | ||
| Power source | USB bus powered | ||
| Operating environment | Temperature: 0 - 40° C (32 - 104° F), Humidity: 20 - 85% (no condensation) | ||
| Dimensions | 235 (W) x 46 (H) x 226 (D) mm (9.3 (W) x 1.8 (H) x 8.9 (D) in) | ||
| Weight | 0.8 kg (1.8 lbs) | ||
| Supported OS | Windows 10 (32 bit/64 bit), Windows 8.1 (32 bit/64 bit), Windows 7 (32 bit/64 bit), macOS 10.14, macOS 10.13, macOS 10.12 | ||
| Accessories | USB cable 3 m (9.8 ft), User's Manual | ||
| Other | Firmware update (transferred from a PC/Mac through USB), Option Daisy chain cable (Product number: YCBL-DC3M) | ||
| Audio | Microphones | Unidirectional microphones x 3, 360° coverage | |
| Speakers | Full-range speaker x 1 | ||
| Maximum volume | Momentary maximum: 91 dB (0.5 m) | ||
| Frequency bandwidth | For sound pickup: 100 Hz - 20,000 Hz, For playback: 190 Hz - 20,000 Hz | ||
| Signal processing | Adaptive echo canceller, Noise reduction, Automatic tracking, Automatic gain control, Dereverberation | ||

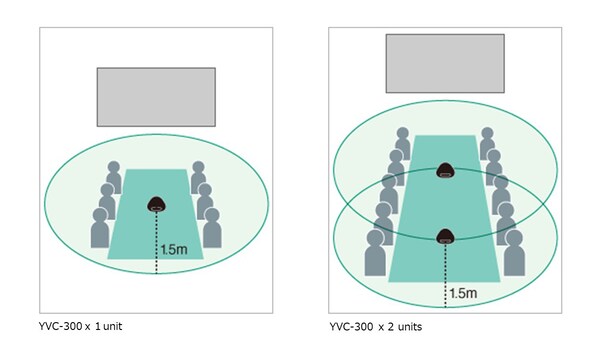

Images of sound pickup range
"Recommended 1.5 m (4.9 ft), Max. 3 m (9.8 ft)"
The sound pickup range depends on the operating environment.
