The standards stay, but innovation never ends.
The pursuit of perfection is ongoing and will probably never end, but along the way Yamaha has introduced a number of innovations that have become industry standards offering performance and familiarity that discerning users continue to demand. By definition, “standards” are best kept as they are. With evolutionary refinements, of course.
Yamaha CL series digital mixing consoles represent a new level of refinement. They offer an evolved experience in accessible mixing, plus sonic purity with sound shaping capabilities that will give the most imaginative engineer unprecedented creative freedom. The CL series embodies the leading standards in live sound in their most advanced, most expressive form.
Keys to Live Sound Success
Main Features
A creative console for expressive engineering.
A creative console for expressive engineering.

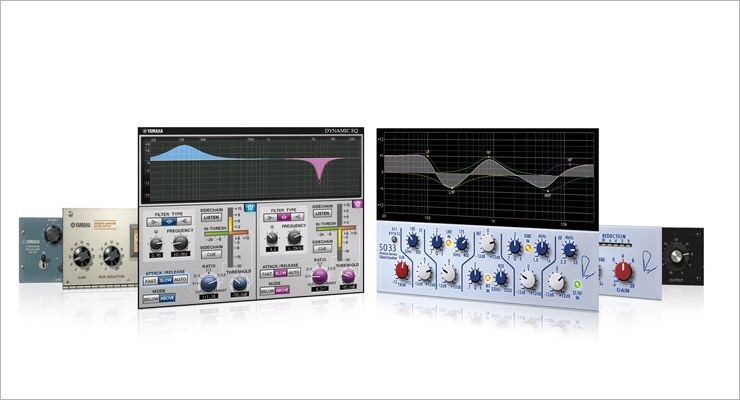

Every engineer, artist, and audience agrees that sound quality is the bottom line. That’s a given. Through thorough analysis, review, and refinement of every detail of the circuitry and technology used, Yamaha CL series consoles deliver naturally superior sound plus a comprehensive range of “coloring” options that give the sonic craftsmen who will use them extraordinary creative freedom. The signal processors provided are plentiful and of the highest quality, including extraordinary Portico 5033/5043 EQ and compressor devices that bring Yamaha VCM technology together with the legendary talents of Rupert Neve. The platform is pure and natural, so the engineer can create and deliver the ideal sound.
Efficient, enjoyable operation.
Efficient, enjoyable operation.

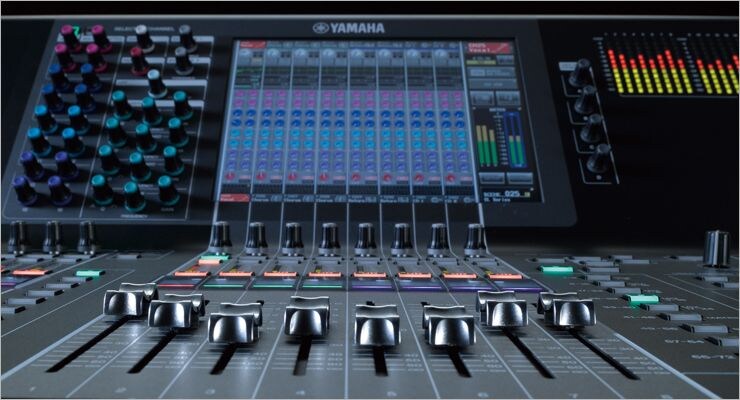

A truly useful sound reinforcement console is one that can keep pace with the rapidly and dramatically changing demands of live sound applications. Efficient, intuitive operation is essential. Yamaha’s acclaimed Centralogic concept is the core of a refined user interface that offers a new, unprecedented level of operating efficiency in the CL series, from visual feedback right down to the form and feel of the faders and controls. The CL consoles are also ready for seamlessly integrated remote control and offline editing via an Apple iPad® or other computer. Control is familiar and intuitive, while at the same time offering extensive freedom.
Scalable, versatile network capabilities.
Scalable, versatile network capabilities.
Network capabilities are rapidly becoming fundamental and indispensable in today’s fast-paced world of digital live sound. CL series consoles feature separate console and I/O rack components that communicate via the Dante™ network audio protocol, allowing fast, efficient design and deployment of capable systems from the most basic to the dazzlingly complex. The ability to add Lake® processing via expansion slots also adds to the system’s versatility and adaptability to the widest range of mixing needs.
Related Applications
Features you can depend on for unsurpassed control and realibility, plus sound that delivers every show with maximum sonic impact.
Broadcast applications demand a great deal of the equipment used in terms of features, adaptability, sound, and reliability. That’s why you’ll find Yamaha professional sound gear in broadcast studios and vehicles around the world.
Product Information
CL5 Digital Mixing Console Discontinued
With a three-section fader layout for efficient hands-on control, the CL5 is the ideal choice for a diverse spectrum of live sound systems.
- Input channels: 72 mono, 8 stereo.
- Fader configuration: 16-fader left section, 8-fader Centralogic section, 8-fader right section, 2-fader master section .
- Stainless steel stay for iPad support.
- Built-in meter bridge.
CL3 Digital Mixing Console Discontinued
An ideal blend of compact size and channel capacity for a variety of live and installed applications.
- Input channels: 64 mono, 8 stereo.
- Fader configuration: 16-fader left section, 8-fader Centralogic section, 2-fader master section .
- Stainless steel stay for iPad support.
- Meter bridge optional.
CL1 Digital Mixing Console Discontinued
Dual 8-fader sections in a space-saving console that can be used alone or cascaded to another CL console for input expansion.
- Input channels: 48 mono, 8 stereo.
- Fader configuration: 8-fader left section, 8-fader Centralogic section, 2-fader master section .
- Meter bridge optional.

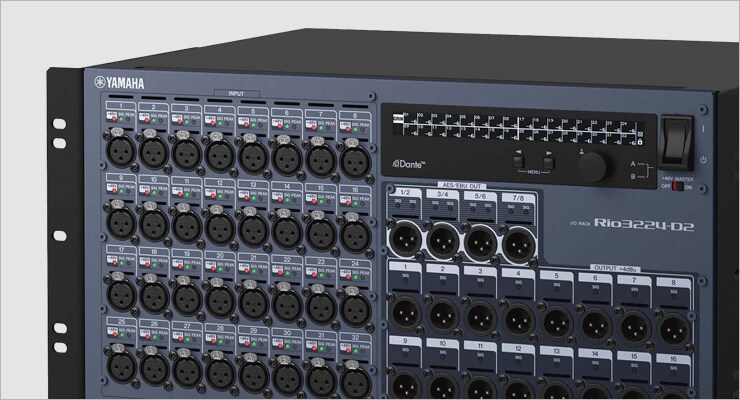

Rio3224-D2 I/O Rack
This high-capacity, high-performance I/O rack is compatible with Yamaha CL and QL series consoles as well as the RIVAGE PM series. It features 32 analog inputs, 16 analog outputs, and eight digital AES/EBU outputs. The Rio3224-D2 connects directly to Dante digital audio networks, allowing flexible system configuration. Dual power supply units are built in for high reliability, and a character/graphic display offers easy visual confirmation.
- 32 analog inputs and 16 outputs, and 8 digital outputs.
- Redundant connections are supported with primary and secondary connectors. Daisy chain connections are also supported.
- Comprehensive display and local control of gain and other parameters.
- Dual power supply units are built in for high reliability.
- Power consumption: 120W
- Dimensions (WxHxD): 480 x 220 x 368mm (18.9" x 8.7" x 14.5")
- Net Weight: 13.5 kg (29.8 lbs)
Rio1608-D2 I/O Rack
This high-performance I/O rack features 16 analog inputs and 8 analog outputs, and is compatible with Yamaha CL and QL series consoles as well as the RIVAGE PM series. The Rio1608-D2 connects directly to Dante digital audio networks, allowing flexible system configuration. Dual power supply units are built in for high reliability, and a character/graphic display offers easy visual confirmation.
- 16 analog inputs and 8 outputs.
- Redundant connections are supported with primary and secondary connectors. Daisy chain connections are also supported.
- Comprehensive display and local control of gain and other parameters.
- Dual power supply units are built in for high reliability.
- Power consumption: 72W
- Dimensions (WxHxD): 480 x 132 x 368mm (18.9" x 5.2" x 14.5")
- Net Weight: 9.6 kg (21.2 lbs)
Option
MBCL
Peak Meter Bridge for CL3 and CL1.
Mini-YGDAI Cards
MY (Mini-YGDAI) series expansion cards for use in the option I/O slots of digital mixers and mixing engines. 3rd-party cards also available.
PW800W
The PW800W is extremely compact and lightweight (3U, 10kg). Thanks to its high efficiency, the low speed cooling fans are extremely quiet. PW800W can be added as a redundant power supply for CL Series or M7CL. When using with PM5D, two units can be serially connected to achieve failsafe operation. PW800W accepts 100 - 240 volts so it can be used anywhere.
LA1L
LED Gooseneck Console Lamp.
